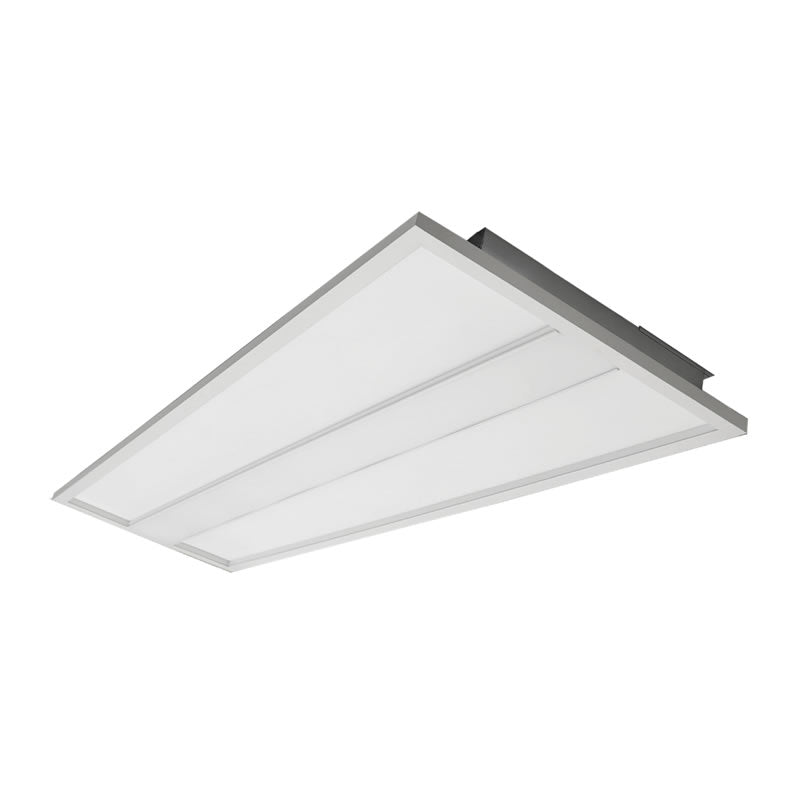

WESTGATE LTRB-1X4-MCTP 25W/30W/35W 1x4 LED Back-Lit Troffer 35K/40K/50K 120-277V

Name: WESTGATE LTRB-1X4-MCTP 25W/30W/35W 1x4 LED Back-Lit Troffer 35K/40K/50K 120-277V
Brand: WESTGATE
SKU: LTRB-1X4-MCTP
Price: 108.74 USD
Availability: InStock

$108.74

Shipping calculated at checkout.

Specifications & Downloads

View Spec Sheet

Barcode: 845060084962

Description

Identification & Application

WESTGATE LTRB-1X4-MCTP 25W/30W/35W 1x4 LED Back-Lit Troffer 35K/40K/50K 120-277V

The WESTGATE LTRB-1X4-MCTP 25W/30W/35W 1x4 LED Back-Lit Troffer 35K/40K/50K 120-277V is an LED panel or troffer fixture designed for hotel, offices, retail outlets, restaurant, parking garages, storage room, conference room, education facilities and more; This indoor commercial lighting is ideal for hotels, offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, education facilities, and more.

This model is part of the LTRB SERIES product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, environmental rating, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate

Manufacturer Part Number (MPN): LTRB-1X4-MCTP

Series: LTRB SERIES

Product Type: Troffer Fixture

Power / Wattage: 20W/30W/40W

Input Voltage: AC120V-277V 50/60Hz

Voltage: 120-277V

Color Temperature / Color: 35K/40K/50K, MCTP

Color Temperature: 3500K/4000K/5000K

Lumens: 2600LM/ 3800LM/ 4800LM

Efficacy: 130/127/120LPW

CRI: CRI ≥ 80

Dimming: 0~10V Dimming

Power Factor: >0.90

Beam Angle: 110°

Rated Life: 50,000 hrs

Operating Temperature: -68ºF~104ºF

IP Rating: IP20 (Indoor use only)

Specification Sheet Features: Fixture Operating Voltage: 36VDC; Multi CCT & Multi Power; (selectable switch on back of fixture); This indoor commercial lighting is ideal for hotels, offices; Earthquake hooks and Suspension Hooks Pre-Installed; Multi Color Temperature & Multi Power; 5-Year Warranty

Applications: hotel, offices, retail outlets, restaurant, parking garages, storage room, conference room, education facilities and more; This indoor commercial lighting is ideal for hotels, offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, education facilities, and more

Documentation: See manufacturer specification sheet.
