WESTGATE LTRD-2X4-MCTP 30W/40W/50W 2x4 LED Dual Lens Troffer 35K/40K/50K 120-277V

$168.74
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet
Barcode: 845060062717

Description

Identification & Application

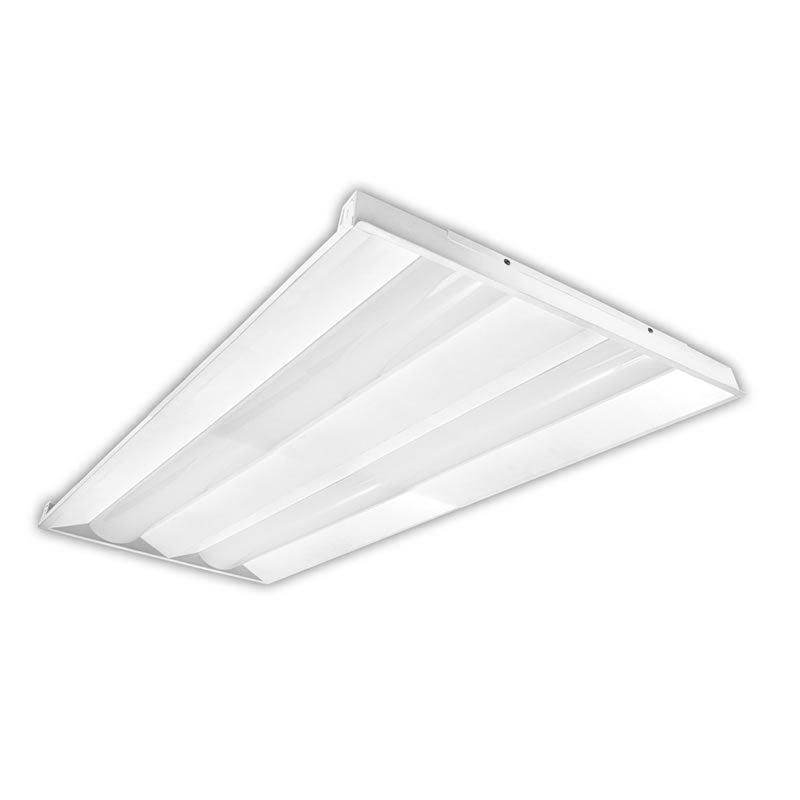

WESTGATE LTRD-2X4-MCTP 30W/40W/50W 2x4 LED Dual Lens Troffer 35K/40K/50K 120-277V

The WESTGATE LTRD-2X4-MCTP 30W/40W/50W 2x4 LED Dual Lens Troffer 35K/40K/50K 120-277V is an LED panel or troffer fixture designed for both new construction and remodel/replacement of fluorescent troffers in commercial office spaces, schools, healthcare facilities and retail merchandising areas.

This model is part of the LTRD SERIES Commercial Lighting product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, environmental rating, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate
Manufacturer Part Number (MPN): LTRD-2X4-MCTP
Series: LTRD SERIES Commercial Lighting
Product Type: Troffer Fixture
Power / Wattage: 30W/ 40W/ 50W
Input Voltage: 120-277VAC 50/60Hz
Voltage: 120-277V
Color Temperature / Color: 35K/40K/50K, MCTP
Color Temperature: 3500K/4000K/5000K
Lumens: 3750LM/ 5000LM/ 6250LM
Efficacy: 125 LPW
CRI: CRI ≥ 80
Dimming: 0~10V Dimming
Power Factor: >0.92
IP Rating: IP20 Indoor use only
Specification Sheet Features: High Quality LED Chips Provide High Efficiency, Heat; Driver disconnect provided where required to comply with; Multi CCT: Selectable Multi-CCT & Power Switches; Inside The Driver Box; Dissipation, Stability, and Lumen Maintenance; Individual, Pure Aluminum Heat Sinks Offers Heat; Transmission Faster Than Die Cast Steel; Unique Beam Angles and Reduces Glare
Applications: both new construction and remodel/replacement of fluorescent troffers in commercial office spaces, schools, healthcare facilities and retail merchandising areas
Documentation: See manufacturer specification sheet.
