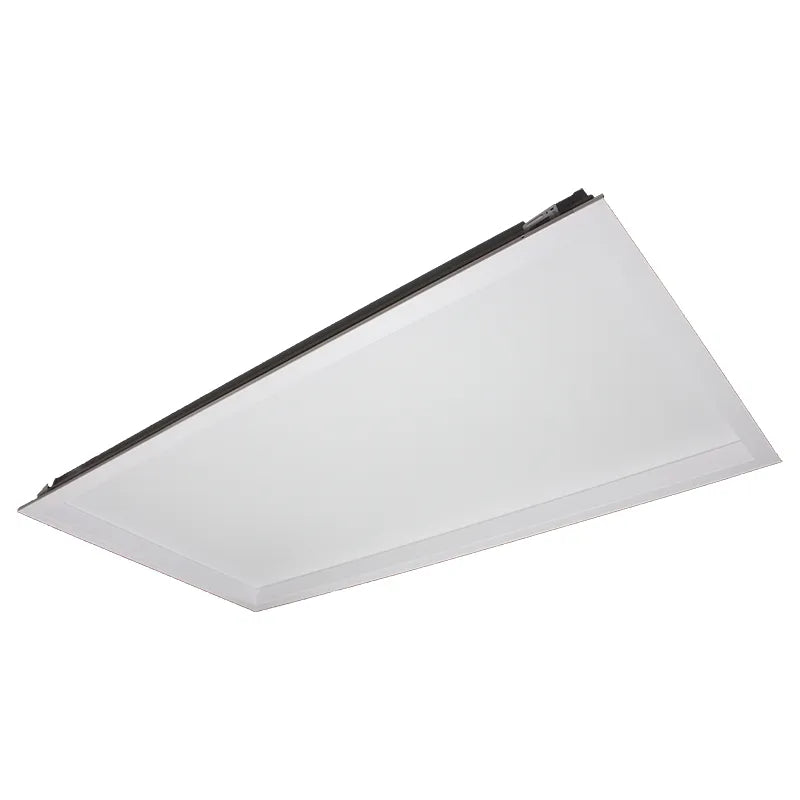

WESTGATE LTRR-2X4-MCTP4 30W/40W/50W 2x4 LED Recessed Panel Light 30K/35K/40K/50K 120-277V

Name: WESTGATE LTRR-2X4-MCTP4 30W/40W/50W 2x4 LED Recessed Panel Light 30K/35K/40K/50K 120-277V
Brand: WESTGATE
SKU: LTRR-2X4-MCTP4
Price: 163.74 USD
Availability: InStock

$163.74

Shipping calculated at checkout.

Specifications & Downloads

View Spec Sheet

Barcode: 840378312073

Description

Identification & Application

WESTGATE LTRR-2X4-MCTP4 30W/40W/50W 2x4 LED Recessed Panel Light 30K/35K/40K/50K 120-277V

The WESTGATE LTRR-2X4-MCTP4 30W/40W/50W 2x4 LED Recessed Panel Light 30K/35K/40K/50K 120-277V is an LED recessed downlight designed for wattage and color temperature (CCT). Ideal for commercial and architectural spaces, it provides seamless integration with varied design aesthetics while delivering superior illumination performance. Featuring adjustable power settings, this troffer.

This model is part of the LTRR SERIES Commercial Lighting product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, environmental rating, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate

Manufacturer Part Number (MPN): LTRR-2X4-MCTP4

Series: LTRR SERIES Commercial Lighting

Product Type: Flat Panel Fixture

Power / Wattage: 30W/40W/50W

Input Voltage: 120-277VAC 50/60Hz

Voltage: 120-277V

Color Temperature / Color: 30K/35K/40K/50K

Color Temperature: 3000K/3500K/4000K/5000K

Lumens: 5500LM

Efficacy: 110 LPW

CRI: CRI ≥ 80

Dimming: 0~10V Dimming

Power Factor: >0.92

IP Rating: IP20 Indoor use only

Specification Sheet Features: High Quality LED Chips Provide High Efficiency, Heat; Driver Disconnect provided Where Required to Comply; Multi CCT: Selectable Multi-CCT & Power Switches; Inside The Driver Box; Dissipation, Stability, And Lumen Maintenance; Individual, Pure Aluminum Heat Sinks Offers Heat; Transmission Faster Than Die Cast Steel; Unique Beam Angles and Reduces Glare

Applications: wattage and color temperature (CCT). Ideal for commercial and architectural spaces, it provides seamless integration with varied design aesthetics while delivering superior illumination performance. Featuring adjustable power settings, this troffer

Documentation: See manufacturer specification sheet.
