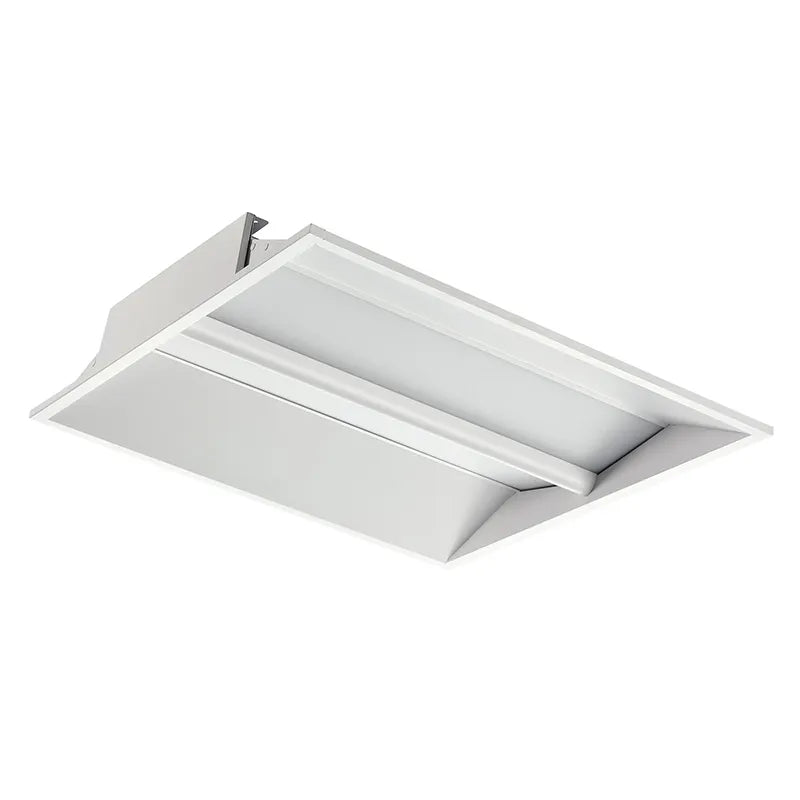

WESTGATE LTRW-2X2-MCTP4 24W/36W 2x2 LED Edge-Lit Wing Design Troffer 30K/35K/40K/50K 120-277V

$112.74
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet
Barcode: 840378312042

Description

Identification & Application

WESTGATE LTRW-2X2-MCTP4 24W/36W 2x2 LED Edge-Lit Wing Design Troffer 30K/35K/40K/50K 120-277V

The WESTGATE LTRW-2X2-MCTP4 24W/36W 2x2 LED Edge-Lit Wing Design Troffer 30K/35K/40K/50K 120-277V is an LED panel or troffer fixture designed for wattage and color temperature (CCT). Ideal for commercial and architectural spaces, it provides seamless integration with varied design aesthetics while delivering superior illumination performance. Featuring adjustable power settings, this troffer.

This model is part of the LTRW SERIES Commercial Lighting product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, environmental rating, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate
Manufacturer Part Number (MPN): LTRW-2X2-MCTP4
Series: LTRW SERIES Commercial Lighting
Product Type: Troffer Fixture
Power / Wattage: 24W/36W
Input Voltage: 120-277VAC 50/60Hz
Voltage: 120-277V
Color Temperature / Color: 30K/35K/40K/50K
Color Temperature: 3000K/3500K/4000K/5000K
Lumens: 2760LM/4140LM
Efficacy: 115 LPW
CRI: CRI ≥ 80
Dimming: 0~10V Dimming
Power Factor: >0.92
IP Rating: IP20 Indoor use only
Specification Sheet Features: High Quality LED Chips Provide High Efficiency, Heat; Driver disconnect provided where required to comply with; Multi CCT: Selectable Multi-CCT & Power Switches; Inside The Driver Box; Dissipation, Stability, and Lumen Maintenance; Individual, Pure Aluminum Heat Sinks Offers Heat; Transmission Faster Than Die Cast Steel; Unique Beam Angles and Reduces Glare
Applications: wattage and color temperature (CCT). Ideal for commercial and architectural spaces, it provides seamless integration with varied design aesthetics while delivering superior illumination performance. Featuring adjustable power settings, this troffer
Documentation: See manufacturer specification sheet.
