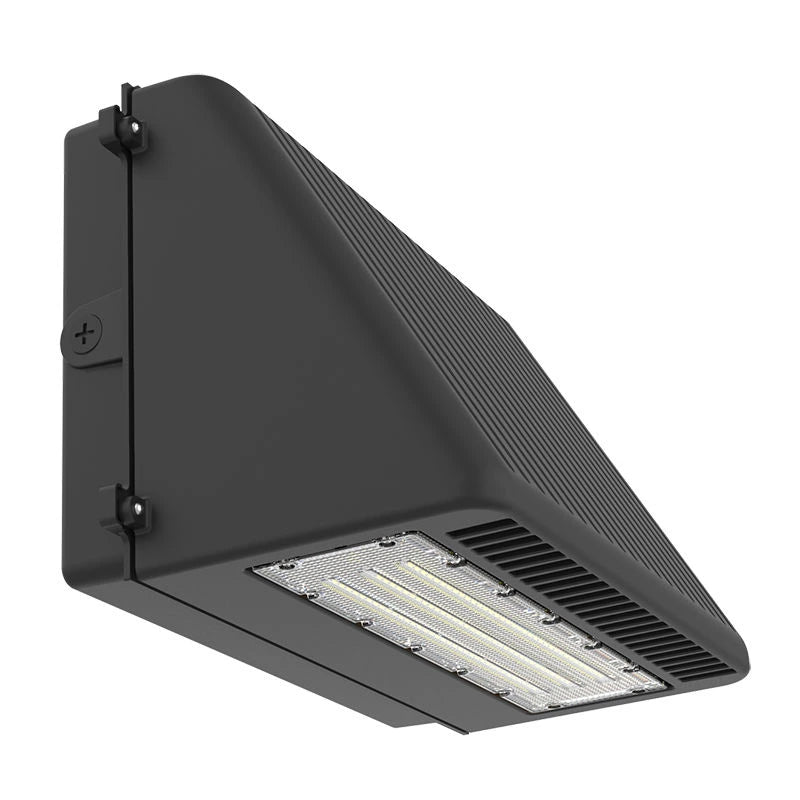

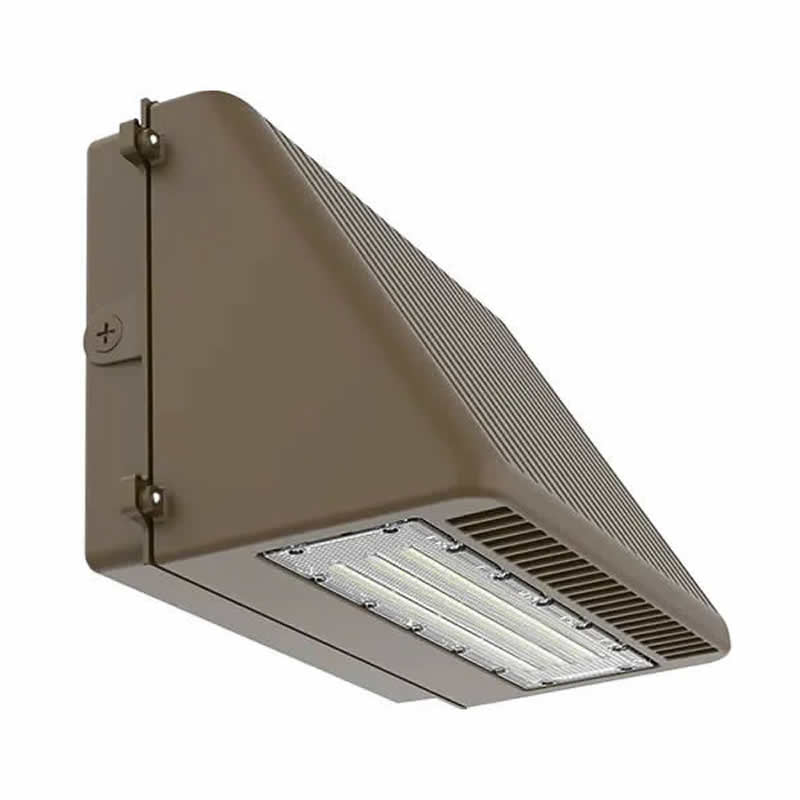

WESTGATE LWPX-30-80W-MCTP 30W/40W/60W/80W LED Wall Pack Full Cut-Off 30K/40K/50K/57K 120-277V

Identification & Application

WESTGATE LWPX-30-80W-MCTP 30W/40W/60W/80W LED Wall Pack Full Cut-Off 30K/40K/50K/57K 120-277V

The Westgate LWPX-30-80W-MCTP is a selectable wattage LED wall pack designed to provide efficient exterior and interior area lighting for commercial, industrial, institutional, and municipal applications. Integrated switches inside the fixture allow field selection of 30W, 40W, 60W, or 80W output along with 3000K, 4000K, 5000K, or 5700K color temperatures to match project requirements.

Constructed from durable die-cast aluminum with a black powder-coated finish, this full cut-off wall pack is Dark Sky compliant and features a high-transmittance, anti-UV, fire-resistant polycarbonate lens. Philips Lumileds SMD 3030 LEDs deliver up to 10,000 lumens at an efficacy of 125 LPW while supporting smooth 0-10V dimming.

Visible specifications confirm universal 120-277V operation, IP65 wet location protection, a 70,000-hour rated life, Type II light distribution, four 1/2-inch wiring knockouts, operating temperatures from -40°F to 104°F, and a 7-year warranty. This fixture is ideal for general site lighting, alleys, loading docks, doorways, pathways, parking areas, and HID wall pack replacements.

Technical Performance Specifications
