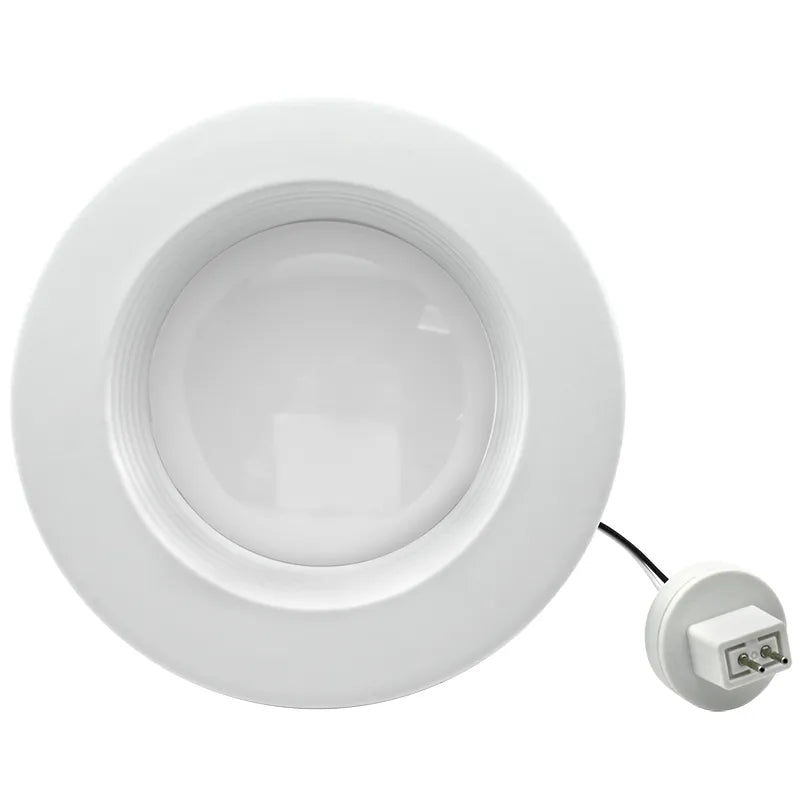

WESTGATE RDL4-BF-MCT5-12V 11W LED 4" Round Baffle Replacement Trim for MR16 Housings 27K/30K/35K/40K/50K 12V

$13.94
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Product Information

SKU
RDL4-BF-MCT5-12V
Barcode 845060090703

PRODUCT SPEC SHEET DOWNLOAD

Spec Sheet View Spec Sheet

Description

Identification & Application

WESTGATE RDL4-BF-MCT5-12V 11W LED 4" Round Baffle Replacement Trim for MR16 Housings 27K/30K/35K/40K/50K 12V

The WESTGATE RDL4-BF-MCT5-12V 11W LED 4" Round Baffle Replacement Trim for MR16 Housings 27K/30K/35K/40K/50K 12V is an LED recessed downlight designed for LED DOWNLIGHTS (BAFFLE TRIM) - 4” ROUND Ideal for New as well as old residential and commercial constructions; applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications.

This model is part of the RDL SERIES product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate
Manufacturer Part Number (MPN): RDL4-BF-MCT5-12V
Series: RDL SERIES
Product Type: Downlight Fixture
Power / Wattage: 11W
Input Voltage: 12V AC
Voltage: 12V
Output Voltage: 36VDC
Color Temperature / Color: 27K/30K/35K/40K/50K, MCT5
Color Temperature: 2700K/3000K/3500K/4000K/
Lumens: 847LM Max.
Efficacy: 77 LPW
CRI: CRI ≥ 90
Dimming: TRIAC Dimming (Using Standard TRIAC LED Dimmers)
Power Factor: >0.90
Rated Life: 50,000 hrs
Ambient Temperature: 104°F
Specification Sheet Features: Electrical: Multi CCT (Selectable Switch On The Back of The; Driver); LED Dimmers); LED DOWNLIGHTS (BAFFLE TRIM) - 4” ROUND Ideal for New; Multi CCT (Selectable Switch On the Back Of The Driver ); Isolated Driver For Improved Thermal Management; lamp Base; LED retrofit trim have been designed to be a flexible
Applications: LED DOWNLIGHTS (BAFFLE TRIM) - 4” ROUND Ideal for New as well as old residential and commercial constructions; applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications
Documentation: See manufacturer specification sheet.
