WESTGATE RMS-4FT-35W-MCTP 20W/28W/35W LED 4ft x 2ft Magnetic Retrofit Strip Kit 27K/30K/35K/40K/50K 120-277V

Name: WESTGATE RMS-4FT-35W-MCTP 20W/28W/35W LED 4ft x 2ft Magnetic Retrofit Strip Kit 27K/30K/35K/40K/50K 120-277V
Brand: WESTGATE
SKU: RMS-4FT-35W-MCTP
Price: 73.74 USD
Availability: InStock

$73.74

Shipping calculated at checkout.

Specifications & Downloads

View Spec Sheet

Barcode: 845060001723

Description

Identification & Application

WESTGATE RMS-4FT-35W-MCTP 20W/28W/35W LED 4ft x 2ft Magnetic Retrofit Strip Kit 27K/30K/35K/40K/50K 120-277V

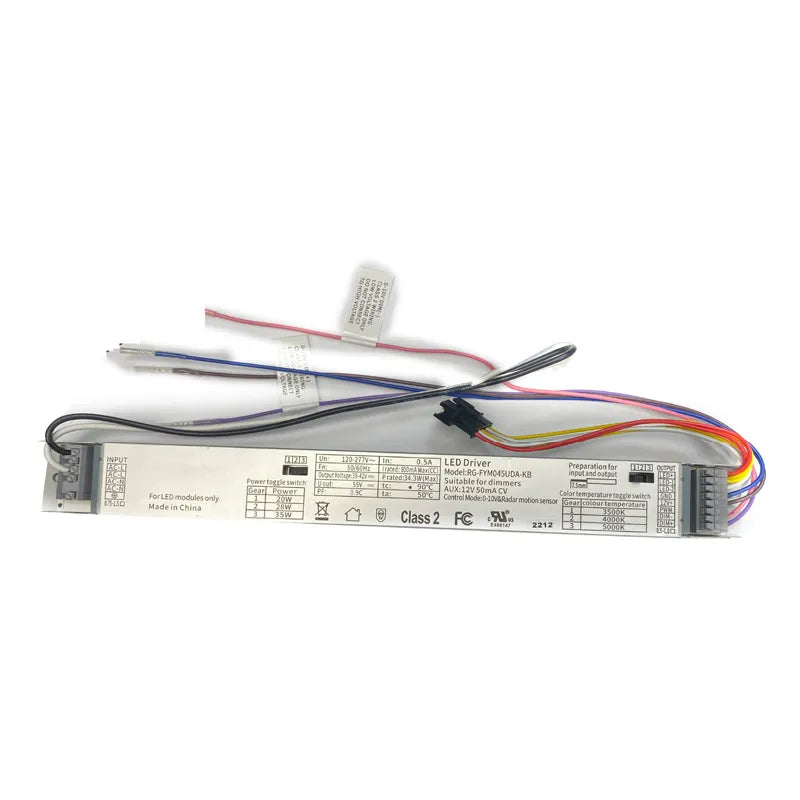

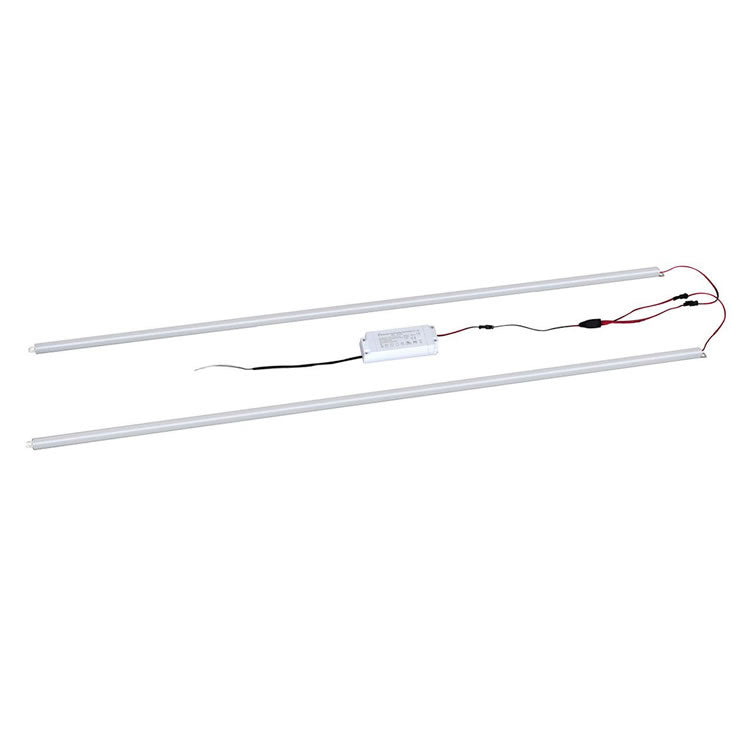

The WESTGATE RMS-4FT-35W-MCTP 20W/28W/35W LED 4ft x 2ft Magnetic Retrofit Strip Kit 27K/30K/35K/40K/50K 120-277V is a linear LED fixture designed for 4FT X 2 MAGNETIC RETROFIT STRIP KIT WITH EXT. DRIVER-; POWER & CCT ADJUSTABLE; Removable Light Diffusing Lens; Included Magnets on the back of Driver and Tubes; Tube Dimensions: 43-1/2” (L) X 5/8” X 5/8”.

This model is part of the RMS SERIES product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate

Manufacturer Part Number (MPN): RMS-4FT-35W-MCTP

Series: RMS SERIES

Product Type: Retrofit Kit

Power / Wattage: 20W/28W/35W

Input Voltage: 120-277VAC 50/60Hz

Voltage: 120-277V

Color Temperature / Color: 27K/30K/35K/40K/50K, MCTP

Color Temperature: 2700K/3000K/3500K/4000K/5000K

Lumens: 4900LM Max.

Efficacy: 140 LPW

CRI: CRI ≥ 80

Dimming: 0~10V Dimming

Power Factor: >0.9

THD: <20%

Beam Angle: Lighting: Introducing our innovative Magnetic Retrofit Strip Kit

Operating Temperature: -20ºF -115ºF

Specification Sheet Features: Electrical: MCTP: Multi Color Temperature & Multi Power/; Lighting: Introducing our innovative Magnetic Retrofit Strip Kit; with External Driver – a game-changer in lighting solu; orescent housing into a high-performing LED system; with unparalleled ease. Designed with convenience; magnets on both the tube and external driver, ensur; 4FT X 2 MAGNETIC RETROFIT STRIP KIT WITH EXT. DRIVER; MCTP: Multi Color Temperature & Multi Power/

Applications: 4FT X 2 MAGNETIC RETROFIT STRIP KIT WITH EXT. DRIVER-; POWER & CCT ADJUSTABLE; Removable Light Diffusing Lens; Included Magnets on the back of Driver and Tubes; Tube Dimensions: 43-1/2” (L) X 5/8” X 5/8”

Documentation: See manufacturer specification sheet.
