WESTGATE RSL4-JB-MCT5 10W LED 4" Slim Snap-In Canless Recessed Light with J-Box White Finish 27K/30K/35K/40K/50K 120V

Name: WESTGATE RSL4-JB-MCT5 10W LED 4" Slim Snap-In Canless Recessed Light with J-Box White Finish 27K/30K/35K/40K/50K 120V
Brand: WESTGATE
SKU: RSL4-JB-MCT5
Price: 9.72 USD
Availability: InStock

$9.72

Shipping calculated at checkout.

Specifications & Downloads

View Spec Sheet

Barcode: 845060001365

Description

Identification & Application

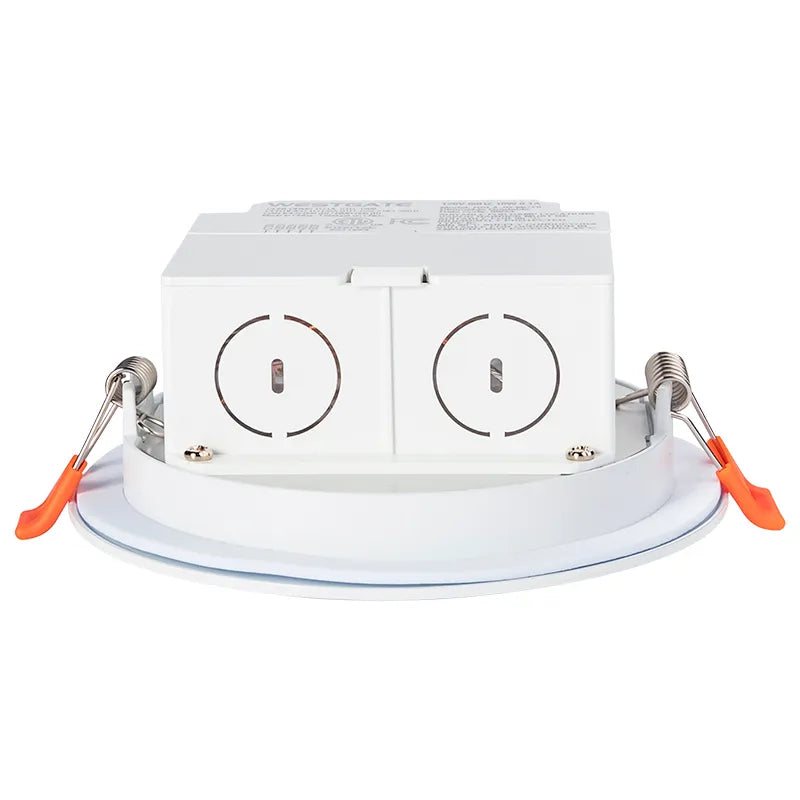

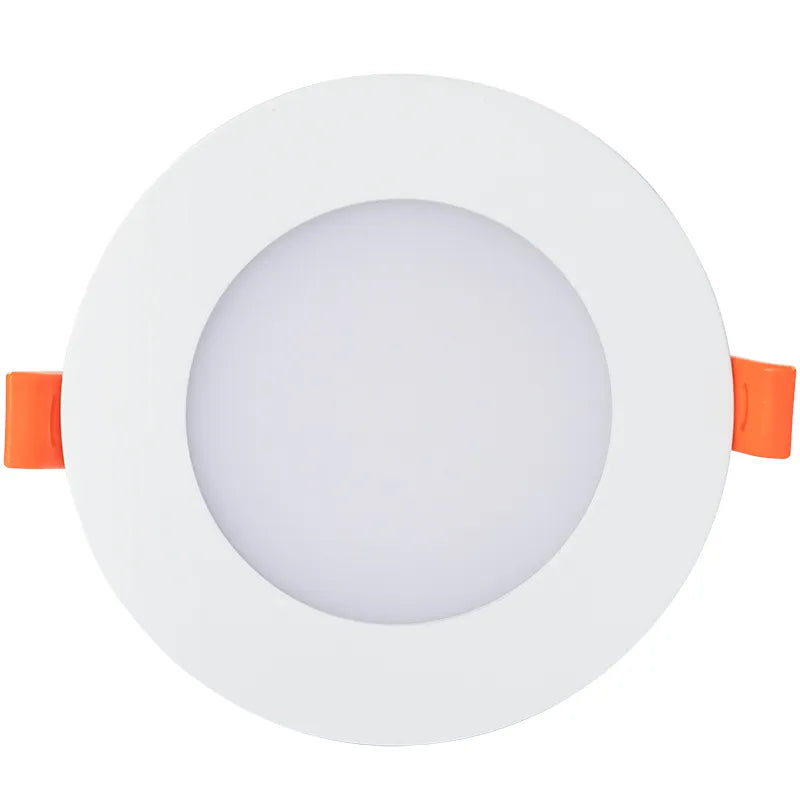

WESTGATE RSL4-JB-MCT5 10W LED 4" Slim Snap-In Canless Recessed Light with J-Box White Finish 27K/30K/35K/40K/50K 120V

The WESTGATE RSL4-JB-MCT5 10W LED 4" Slim Snap-In Canless Recessed Light with J-Box White Finish 27K/30K/35K/40K/50K 120V is an LED recessed downlight designed for new As Well As Old Residential And Commercial; applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications.

This model is part of the RSL SERIES RESIDENTIAL LIGHTING product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate

Manufacturer Part Number (MPN): RSL4-JB-MCT5

Series: RSL SERIES RESIDENTIAL LIGHTING

Product Type: Downlight Fixture

Power / Wattage: 10W

Input Voltage: 120V AC

Voltage: 120V

Output Voltage: 36VDC

Color Temperature / Color: 27K/30K/35K/40K/50K, MCT5

Color Temperature: 2700K/3000K/3500K/4000K/

Lumens: 650LM

Efficacy: 65 LPW

CRI: CRI ≥ 80

Dimming: Dimmable Down to 10% Using a Standard

Power Factor: >0.90

Beam Angle: 100°-110°

Rated Life: 50,000 hrs

Finish: White

Ambient Temperature: -40°F to 104°F

Specification Sheet Features: TRIAC LED Dimmer; LED: Seoul DOB (Driver On Board) Technology; Multi CCT (Selectable Switch on the Back of the driver ); Isolated Driver for Improved Thermal Management; Pot Light Housing is Not Required Even for Insulated; SLIM SNAP-IN RECESSED LIGHTS WITH J-BOX - 4” ROUND; Ideal for New As Well As Old Residential And Commercial; Constructions.

Applications: New As Well As Old Residential And Commercial; applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications

Documentation: See manufacturer specification sheet.
