WESTGATE SDL1S-ST-MCT5-BK 8W LED High-Output Low-Glare Square Canless Recessed Light Black Finish 27K/30K/35K/40K/50K 120V


$29.74
Shipping calculated at checkout.

% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF

Product Information

SKU
SDL1S-ST-MCT5-BK
Barcode 840378314107

PRODUCT SPEC SHEET DOWNLOAD


Description

Identification & Application

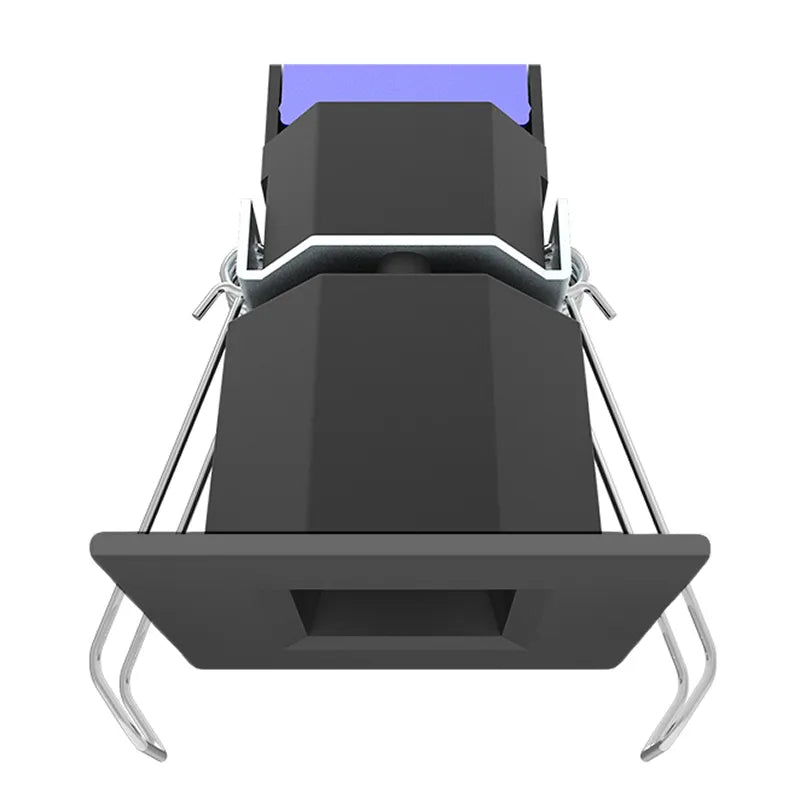

WESTGATE SDL1S-ST-MCT5-BK 8W LED High-Output Low-Glare Square Canless Recessed Light Black Finish 27K/30K/35K/40K/50K 120V

The WESTGATE SDL1S-ST-MCT5-BK 8W LED High-Output Low-Glare Square Canless Recessed Light Black Finish 27K/30K/35K/40K/50K 120V is an LED recessed downlight designed for jewelry stores, boutiques, luxury goods stores, shopping malls, and other spaces that require focused and accent lighting.

This model is part of the RDL1S SERIES RESIDENTIAL LIGHTING product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate
Manufacturer Part Number (MPN): SDL1S-ST-MCT5-BK
Series: RDL1S SERIES RESIDENTIAL LIGHTING
Product Type: Downlight Fixture
Power / Wattage: 8W
Input Voltage: 120V AC
Voltage: 120V
Output Voltage: 36VDC
Color Temperature / Color: 27K/30K/35K/40K/50K, MCT5
Color Temperature: 2700K/3000K/3500K/4000K/5000K
Lumens: 600LM
Efficacy: 75 LPW
CRI: CRI ≥ 90
Power Factor: >0.90
Beam Angle: 15/24/36°
Rated Life: 50,000 hrs
Finish: Black
Ambient Temperature: -40°F to 104°F

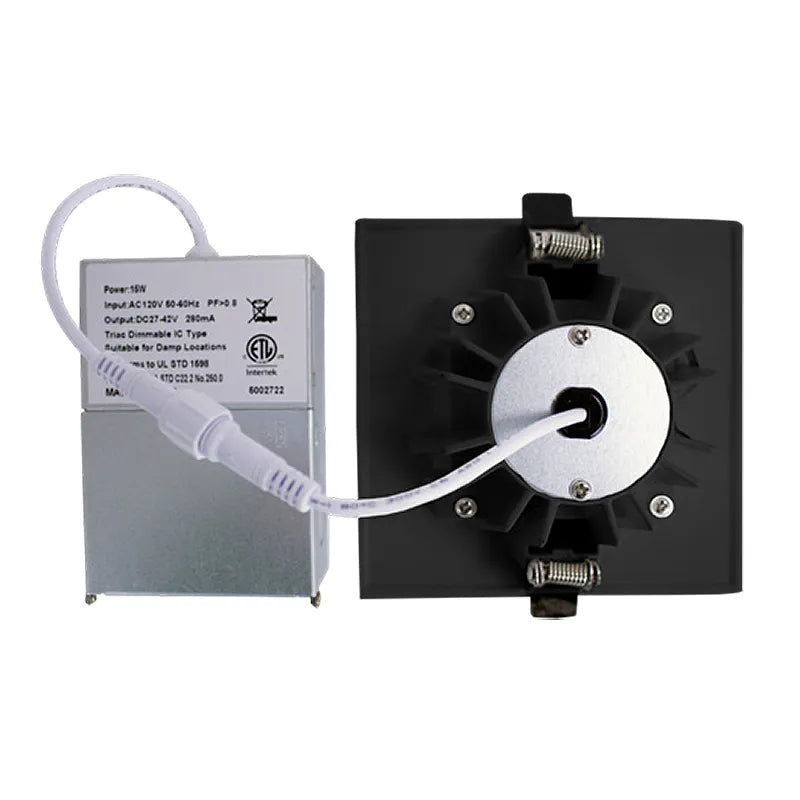

Specification Sheet Features: Electrical: Multi CCT (Selectable Switch On The Back Of The; Driver); LED: High Brightness COB LED; LED DOWNLIGHTS (SMOOTH and BAFFLE TRIM) - 4’’ LED; Anti-glare Downlight Comes Complete With An External Driver; Multi CCT (Selectable Switch on the Back of the driver); Junction box Included, Install Directly in Insulated; Multi CCT (Selectable Switch On The Back Of The
Applications: jewelry stores, boutiques, luxury goods stores, shopping malls, and other spaces that require focused and accent lighting
Documentation: See manufacturer specification sheet.
