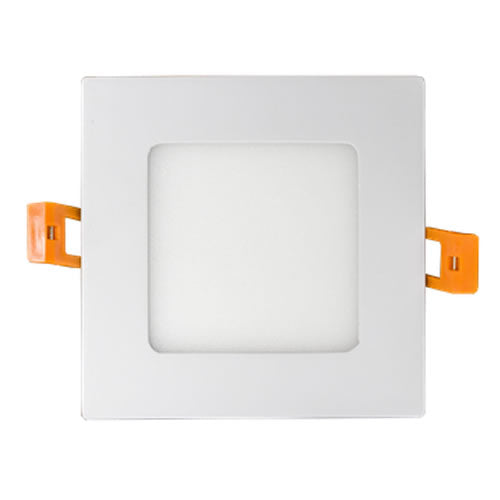

WESTGATE SSL4-MCT5 9W LED 4" Slim Square Canless Light White Finish 27K/30K/35K/40K/50K 120V

Name: WESTGATE SSL4-MCT5 9W LED 4" Slim Square Canless Light White Finish 27K/30K/35K/40K/50K 120V
Brand: WESTGATE
SKU: SSL4-MCT5
Price: 12.53 USD
Availability: InStock

$12.53

Shipping calculated at checkout.

Specifications & Downloads

View Spec Sheet

Barcode: 845060058253

Description

Identification & Application

WESTGATE SSL4-MCT5 9W LED 4" Slim Square Canless Light White Finish 27K/30K/35K/40K/50K 120V

The WESTGATE SSL4-MCT5 9W LED 4" Slim Square Canless Light White Finish 27K/30K/35K/40K/50K 120V is a Westgate Downlight Fixture designed for LED DOWNLIGHTS (SMOOTH TRIM) - 4” SQUARE Ideal for; applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications.

This model is part of the SSL SERIES RESIDENTIAL LIGHTING product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate

Manufacturer Part Number (MPN): SSL4-MCT5

Series: SSL SERIES RESIDENTIAL LIGHTING

Product Type: Downlight Fixture

Power / Wattage: 9W

Input Voltage: 120V AC

Voltage: 120V

Output Voltage: 36VDC

Color Temperature / Color: 27K/30K/35K/40K/50K, MCT5

Color Temperature: 2700K/ 3000K/ 3500K/ 4000K/

Lumens: 630LM

Efficacy: 70 LPW

CRI: CRI ≥ 80

Dimming: Dimmable

Power Factor: >0.90

Beam Angle: 100°-110°

Rated Life: 50,000 hrs

Finish: White

Ambient Temperature: -40°F to 104°F

Specification Sheet Features: LED: Seoul DOB (Driver On Board) Technology; Multi CCT (Selectable Switch on the Back of the driver ); LED DOWNLIGHTS (SMOOTH TRIM) - 4” SQUARE Ideal for; Isolated Driver for Improved Thermal Management; Pot Light Housing is Not Required Even for Insulated; Junction box 1” Thick Included with Fixture; New As Well As Old Residential And Commercial Constructions.; 5-Year Warranty

Applications: LED DOWNLIGHTS (SMOOTH TRIM) - 4” SQUARE Ideal for; applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications

Documentation: See manufacturer specification sheet.
