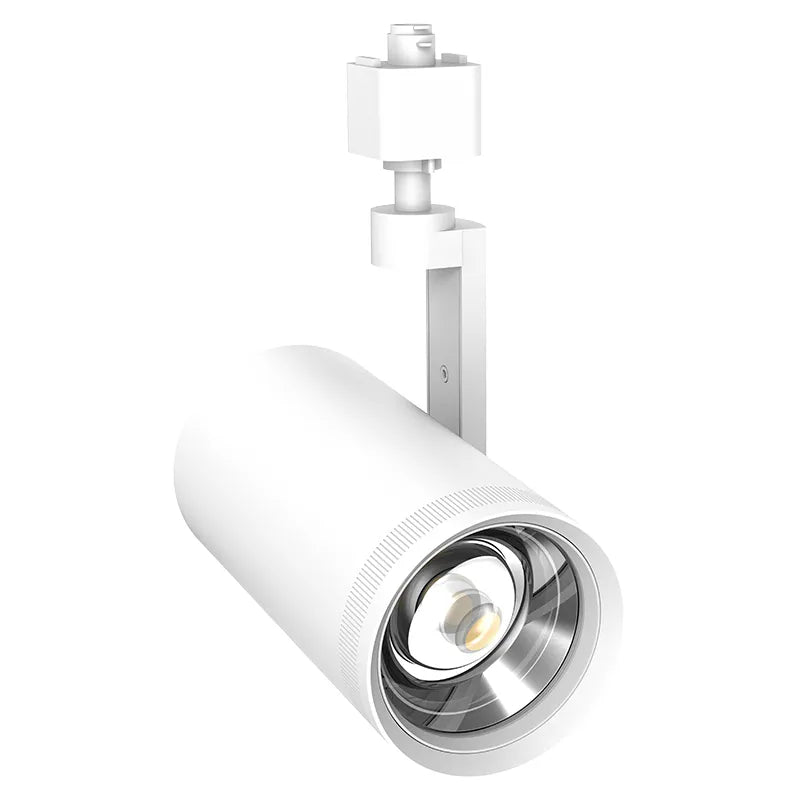

WESTGATE TRS-10-20W-MCTP-36D-WH 10W/15W/20W LED Track Head H-Type Single Circuit 36° Flood White Finish 27K/30K/35K/40K/50K 120V

$73.74
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet
Barcode: 840378310666

Description

Identification & Application

WESTGATE TRS-10-20W-MCTP-36D-WH 10W/15W/20W LED Track Head H-Type Single Circuit 36° Flood White Finish 27K/30K/35K/40K/50K 120V

The WESTGATE TRS-10-20W-MCTP-36D-WH 10W/15W/20W LED Track Head H-Type Single Circuit 36° Flood White Finish 27K/30K/35K/40K/50K 120V is a Westgate Track Fixture designed for the Builder Series Track Heads: the ultimate versatile and; efficient lighting solution designed to meet the diverse needs of; modern lighting projects. With an array of adjustable features; elegant finishes, and superior performance, the Builder Series; Track Heads are perfect for any space requiring high-quality.

This model is part of the TRS SERIES Commercial Lighting product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate
Manufacturer Part Number (MPN): TRS-10-20W-MCTP-36D-WH
Series: TRS SERIES Commercial Lighting
Product Type: Track Fixture
Power / Wattage: 10W/15W/20W
Input Voltage: 120V AC / 50-60 Hz
Voltage: 120V
Color Temperature / Color: 27K/30K/35K/40K/50K, MCTP
Color Temperature: 2700K/3000K/3500K/4000K/5000K
Lumens: 1800LM
Efficacy: 90 LPW
CRI: CRI ≥ 90
Dimming: Triac and ELV dimmable down to 10%.
Power Factor: >0.95
Beam Angle: Adjustable from 36°
Rated Life: 70,000 Hrs
Finish: White
Operating Temperature: -4ºF to 104ºF
Specification Sheet Features: BUILDER SERIES TRACK HEADS WITH EXT. DRIVERS, POWER AND CCT ADJUSTABLE; The Builder Series Track Heads: the ultimate versatile and; Multi CCT and Power (Switches are on back of; the fixture); Multi Color Temperature & Multi Power/Wattage (Selectable); Flicker-Free Dimming. For Full List Of Dimmers Refer; Multi CCT (Switches Are On The Driver Box); Voltage: 120V AC / 50-60 Hz
Applications: The Builder Series Track Heads: the ultimate versatile and; efficient lighting solution designed to meet the diverse needs of; modern lighting projects. With an array of adjustable features; elegant finishes, and superior performance, the Builder Series; Track Heads are perfect for any space requiring high-quality
Documentation: See manufacturer specification sheet.
