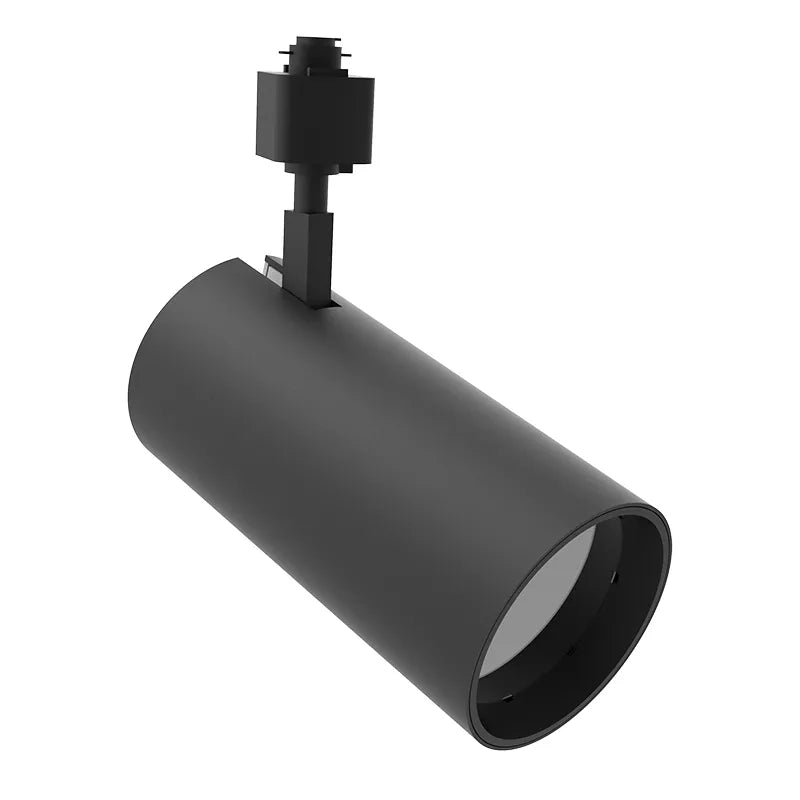

WESTGATE TRS-20-30W-MCTP-36D-BK 20W/25W/30W LED Track Head H-Type Single Circuit 36° Flood Black Finish 27K/30K/35K/40K/50K 120V

Name: WESTGATE TRS-20-30W-MCTP-36D-BK 20W/25W/30W LED Track Head H-Type Single Circuit 36° Flood Black Finish 27K/30K/35K/40K/50K 120V
Brand: WESTGATE
SKU: TRS-20-30W-MCTP-36D-BK
Price: 89.74 USD
Availability: InStock

$89.74

Shipping calculated at checkout.

Specifications & Downloads

View Spec Sheet

Barcode: 840378310697

Description

Identification & Application

WESTGATE TRS-20-30W-MCTP-36D-BK 20W/25W/30W LED Track Head H-Type Single Circuit 36° Flood Black Finish 27K/30K/35K/40K/50K 120V

The WESTGATE TRS-20-30W-MCTP-36D-BK 20W/25W/30W LED Track Head H-Type Single Circuit 36° Flood Black Finish 27K/30K/35K/40K/50K 120V is a Westgate Track Fixture designed for installation. Ideal for retail, gallery, and commercial applications where precise illumination control is essential.

This model is part of the TRS SERIES Commercial Lighting product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate

Manufacturer Part Number (MPN): TRS-20-30W-MCTP-36D-BK

Series: TRS SERIES Commercial Lighting

Product Type: Track Fixture

Power / Wattage: 20W/25W/30W

Input Voltage: 120V AC / 50-60 Hz

Voltage: 120V

Color Temperature / Color: 27K/30K/35K/40K/50K, MCTP

Color Temperature: 2700K/3000K/3500K/4000K/5000K

Lumens: 2700LM

Efficacy: 90 LPW

CRI: CRI ≥ 90

Dimming: Triac and ELV dimmable down to 10%.

Power Factor: >0.95

Beam Angle: Adjustable from 36°

Rated Life: 70,000 Hrs

Finish: Black

Operating Temperature: -4ºF to 104ºF

Specification Sheet Features: BUILDER SERIES TRACK HEADS WITH EXT. DRIVERS, POWER AND CCT ADJUSTABLE; Multi CCT and Power (Switches are on back of; the fixture); Multi Color Temperature & Multi Power/Wattage (Selectable); Flicker-Free Dimming. For Full List Of Dimmers Refer; Multi CCT (Switches Are On The Driver Box); Die-Cast Aluminum With Powder Coat Finish; 7-Year Warranty

Applications: installation. Ideal for retail, gallery, and commercial applications where precise illumination control is essential

Documentation: See manufacturer specification sheet.
