WESTGATE UCM-20L-12DC 20W Magnetic Dimmable LED Driver 5"x2-1/8"x2" 12VDC

Identification & Application

WESTGATE UCM-20L-12DC 20W Magnetic Dimmable LED Driver 5" x 2-1/8" x 2" 12VDC

The Westgate UCM-20L-12DC is a 20 watt magnetic dimmable LED driver designed to convert 120V AC input power to a regulated 12V DC output for compatible low-voltage LED lighting systems. It is intended for hardwired installations where dependable Class 2 power and magnetic dimming are required.

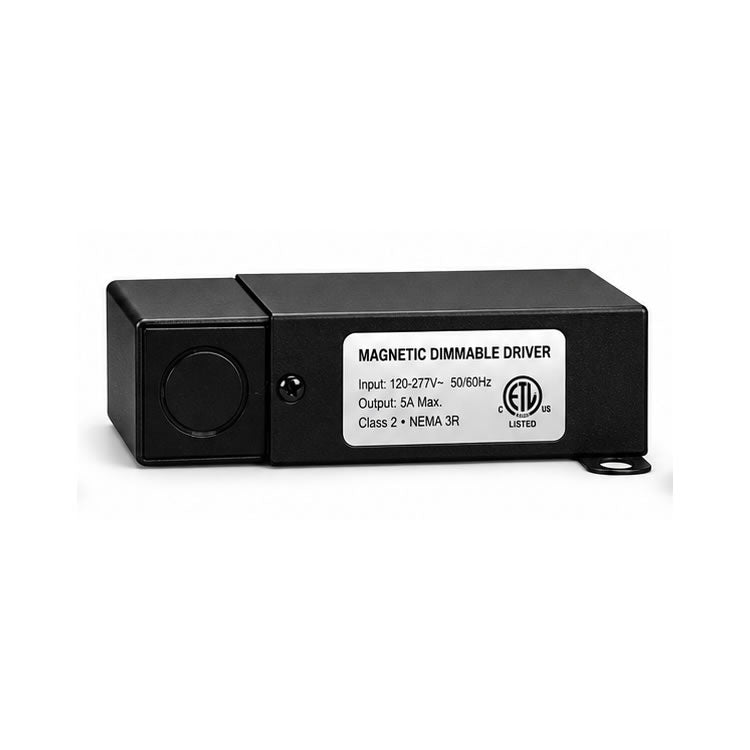

The compact black powder-coated steel enclosure measures 5 inches long by 2-1/8 inches wide by 2 inches deep, making it suitable for low-profile installations. The driver is encapsulated with polyester resin to provide quiet operation while helping protect internal components.

This driver is compatible with most low-voltage magnetic dimmers when the minimum dimmer load requirements are met. Built-in primary and secondary auto-reset breakers provide additional circuit protection during operation.

Visible specifications confirm a 20W maximum output, 12V DC output voltage, 120V AC input, 18 AWG input leads, 14 AWG output leads, UL 1310 Class 2 compliance, and dual 1/2-inch wiring knockouts.

Technical Performance Specifications
