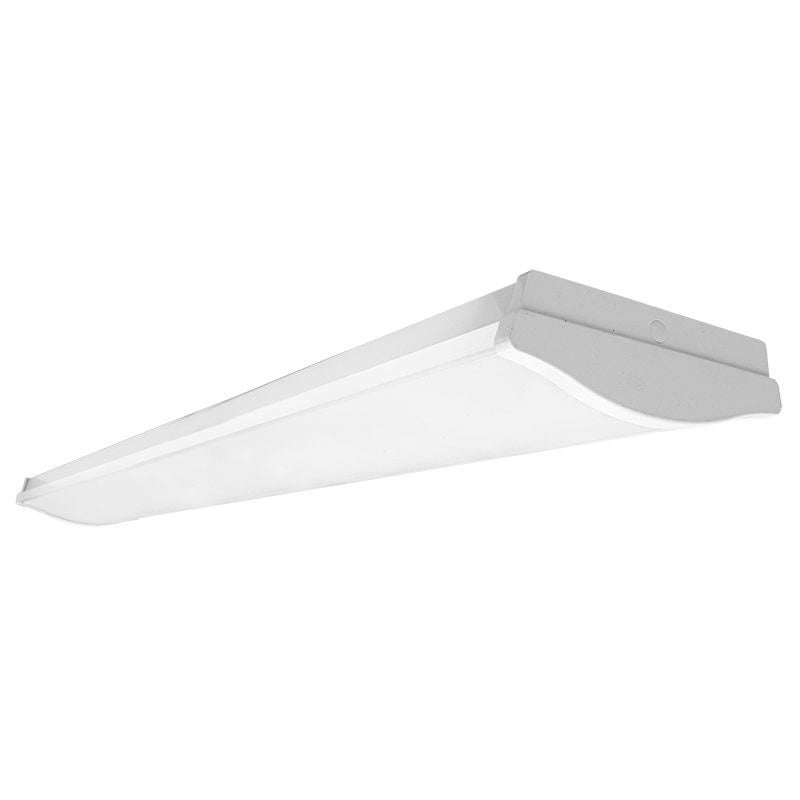

WESTGATE WA-4FT-20-40W-MCTP 20W/30W/40W 4ft LED Wrap-Around Fixture 35K/40K/50K 120-277V

$139.74
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet
Barcode: 845060058963

Description

Identification & Application

WESTGATE WA-4FT-20-40W-MCTP 20W/30W/40W 4ft LED Wrap-Around Fixture 35K/40K/50K 120-277V

The WESTGATE WA-4FT-20-40W-MCTP 20W/30W/40W 4ft LED Wrap-Around Fixture 35K/40K/50K 120-277V is a Westgate Wraparound Fixture designed for damp Locations; corridors, stairwells, public rooms, schools, hospitals, and utility areas.

This model is part of the WA SERIES Commercial Indoor Lighting product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, environmental rating, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate
Manufacturer Part Number (MPN): WA-4FT-20-40W-MCTP
Series: WA SERIES Commercial Indoor Lighting
Product Type: Wraparound Fixture
Power / Wattage: 20W/30W/40W
Input Voltage: 120-277VAC 50/60Hz
Voltage: 120-277V
Color Temperature / Color: 35K/40K/50K, MCTP
Color Temperature: 3500K/4000K/5000K
Lumens: 4400LM Max.
Efficacy: 110 LPW
CRI: CRI ≥ 82
Dimming: 0~10V Dimming
Power Factor: >0.95
Housing / Material: Die-formed Heavy Gauge Cold Rolled Steel
IP Rating: IP40
Specification Sheet Features: Driver: Optional; Optional Battery Backup Available for 30W Units; MCTP: Multi Color & Power Temperature (Selectable; With Switch Inside Fixture); Multi-CCT (selectable with switch inside the fixture); WA SERIES Commercial Indoor Lighting; LED Architectural Wrap-Around Lights; Light Source: High-lumen LE Ds
Applications: Damp Locations; corridors, stairwells, public rooms, schools, hospitals, and utility areas
Documentation: See manufacturer specification sheet.
