WESTGATE WAEW-4FT-30-50W-MCTP-D 30W/40W/50W 4ft x 10" LED Wrap-Around Fixture 30K/40K/50K 120-277V

$98.74
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet
Barcode: 840378321068

Description

Identification & Application

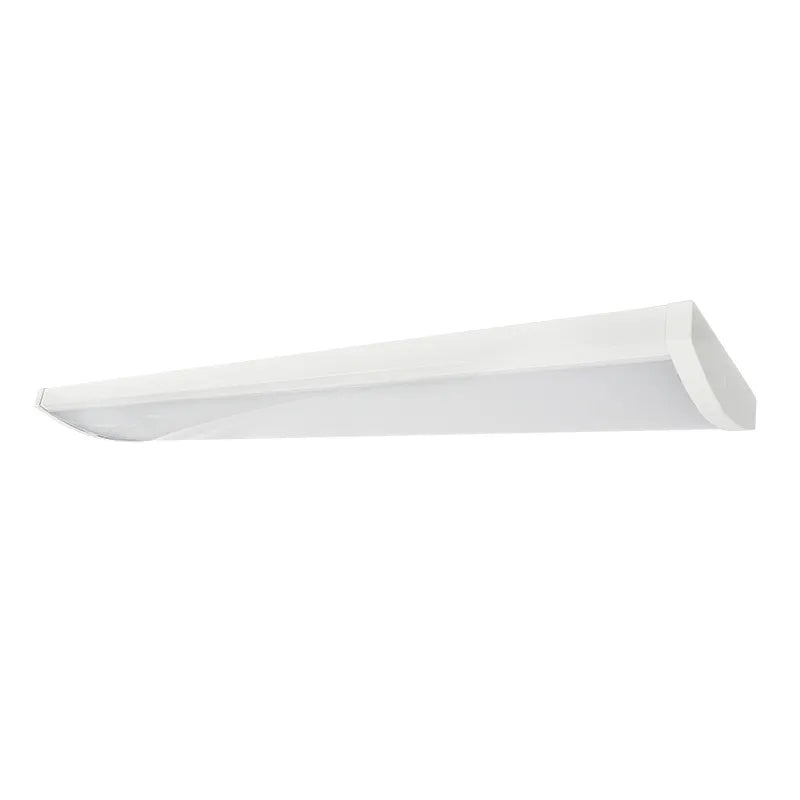

WESTGATE WAEW-4FT-30-50W-MCTP-D 30W/40W/50W 4ft x 10" LED Wrap-Around Fixture 30K/40K/50K 120-277V

The WESTGATE WAEW-4FT-30-50W-MCTP-D 30W/40W/50W 4ft x 10" LED Wrap-Around Fixture 30K/40K/50K 120-277V is a Westgate Wraparound Fixture designed for fixtures are energy-efficient lighting solutions designed for cost- effective illumination in various settings. These fixtures feature a 10-inch wide wrap-around design for uniform light distribution, making them ideal for commercial, industrial, and residential.

This model is part of the WAEW SERIES Commercial Lighting product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate
Manufacturer Part Number (MPN): WAEW-4FT-30-50W-MCTP-D
Series: WAEW SERIES Commercial Lighting
Product Type: Wraparound Fixture
Power / Wattage: 30W/40W/50W
Input Voltage: 120-277V AC 60Hz
Voltage: 120-277V
Color Temperature / Color: 30K/40K/50K, MCTP
Color Temperature: 3000K/4000K/5000K
Lumens: 6000LM Max.
Efficacy: 120 LPW
CRI: CRI ≥ 82
Dimming: 0~10V Dimming
Rated Life: 50,000 hrs.
Housing / Material: Die-formed Cold Rolled Steel With Powder
Operating Temperature: -22°F~104°F
Specification Sheet Features: Multi-CCT (Selectable Switch Inside f Fxture); MCTP: Multi CCT and Power (Selectable Switch; Inside Fixture); Educational Facilities: Classrooms, libraries, and; Housing: Die-formed Cold Rolled Steel With Powder; Coated White; Installation: Ceiling-Mounted; Lens: Polycarbonate Lens
Applications: Fixtures are energy-efficient lighting solutions designed for cost- effective illumination in various settings. These fixtures feature a 10-inch wide wrap-around design for uniform light distribution, making them ideal for commercial, industrial, and residential
Documentation: See manufacturer specification sheet.
