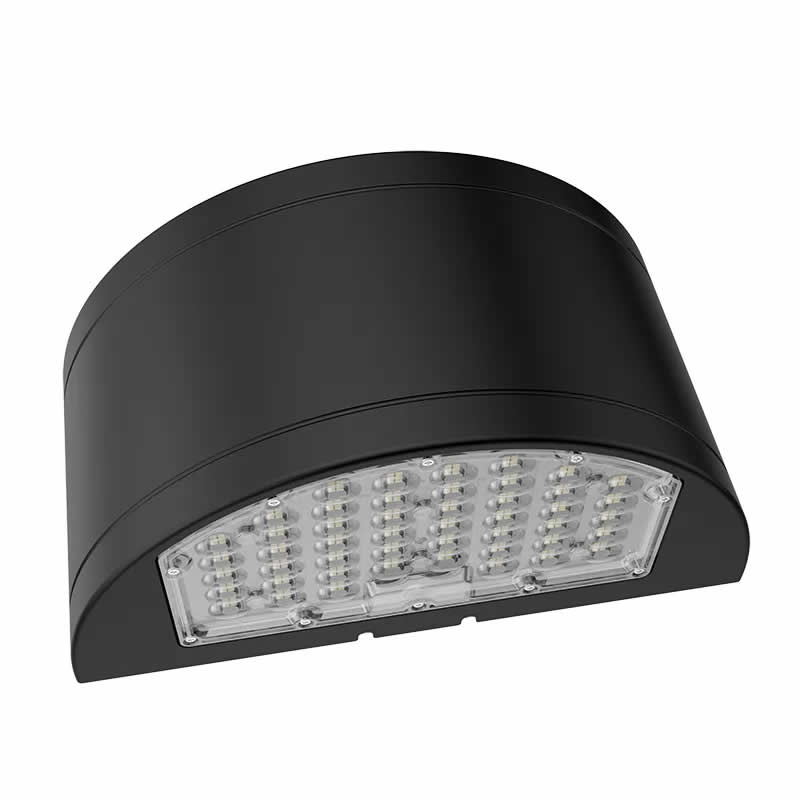

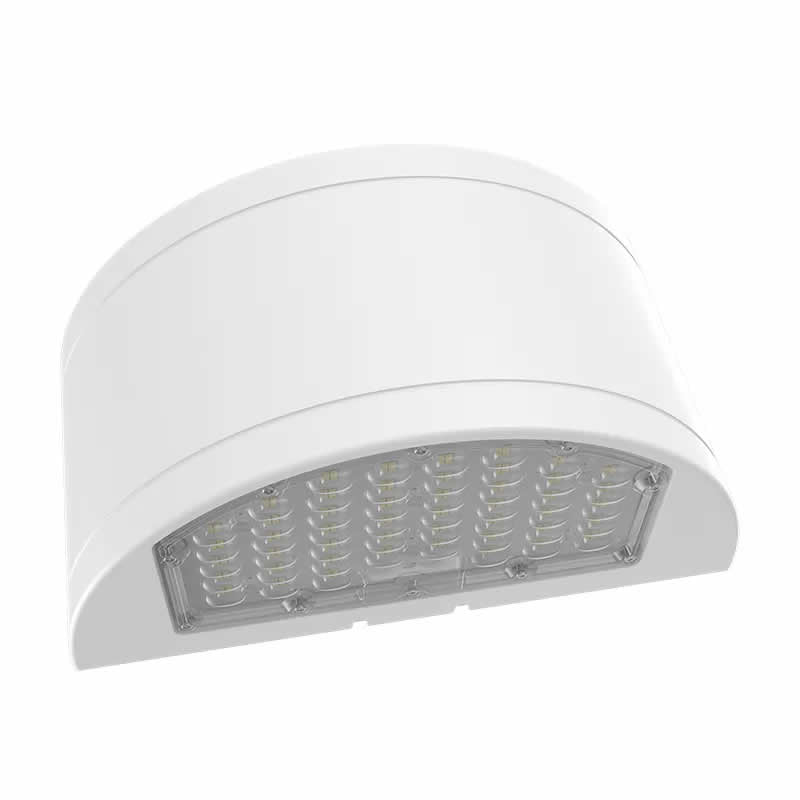

WESTGATE WHCX-24-40W-MCTP 24W/32W/40W LED Up/Down Wall Pack Cylinder 30K/40K/50K 120-277V

$243.74
Shipping calculated at checkout.
Fixure Finish Color
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Product Information

SKU
WHCX-24-40W-MCTP
Barcode 840378303965

PRODUCT SPEC SHEET DOWNLOAD

Spec Sheet View Spec Sheet

Description

Identification & Application

WESTGATE WHCX-24-40W-MCTP 24W/32W/40W LED Up/Down Wall Pack Cylinder 30K/40K/50K 120-277V

The WESTGATE WHCX-24-40W-MCTP is a power-adjustable, color-selectable LED up/down cylinder wall pack engineered to provide modern architectural lighting for commercial and institutional buildings. Its sleek cylindrical design delivers attractive façade illumination while providing dependable security and pathway lighting for a wide range of exterior applications.

Part of the WHCX Series, this fixture combines field-selectable wattage and color temperature with an integrated uplight feature that can be enabled or disabled using the built-in switch. The durable die-cast aluminum housing and high-impact polycarbonate lens provide long-lasting performance in demanding outdoor environments while maintaining a clean architectural appearance.

Designed for reliable long-term operation, the WHCX Series is ideal for hotels, garages, commercial buildings, schools, hospitals, public areas, entrances, walkways, and other architectural lighting applications. Complete electrical, mechanical, optical, and installation specifications are provided below to assist with proper product selection.

Technical Performance Specifications

Brand: Westgate
Manufacturer Part Number (MPN): WHCX-24-40W-MCTP
Series: WHCX Series
Product Type: LED Up/Down Cylinder Wall Pack
Input Voltage: 120-277VAC, 60Hz
Selectable Wattage: 24W / 32W / 40W
Selectable Color Temperature: 3000K / 4000K / 5000K (MCTP)
Total Lumens: Up to 5,800 Lumens
Efficacy: 145 LPW
Power Factor: >0.95
CRI: CRI ≥ 80
Dimming: 0-10V Dimmable
Distribution: Type III Distribution for Wide Walkways, Entrance Roadways, Ramps, and Other Long, Narrow Lighting Applications
Housing: Die-Cast Aluminum with Durable Powder-Coated Finish
Lens: High-Transmittance, UV-Resistant, Fire-Resistant Shatterproof Polycarbonate Lens
Photocell: Integrated DC Button Photocell with ON/OFF Switch
Integrated Uplight: Selectable Integrated Uplight with Switch Control (Up: 10% / Down: 90% or Downlight Only)
Dimensions: 12.99 in. W × 6.49 in. H × 6.49 in. D
Operating Temperature: -4°F to 104°F
Environmental Rating: IP65 Wet Location Rated
Compliance: Full Cutoff, Dark Sky Compliant

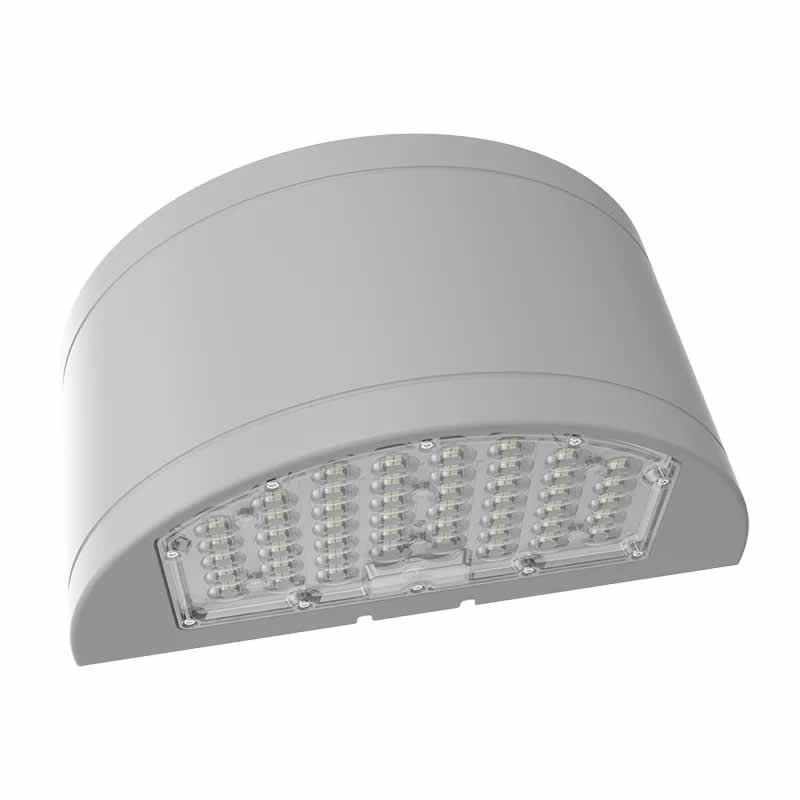

Available Finishes: Bronze, Black, Silver, White
Specification Sheet Features: Field-selectable wattage and color temperature; integrated switch-controlled uplight; die-cast aluminum housing with durable powder-coated finish; high-transmittance, UV-resistant, fire-resistant shatterproof polycarbonate lens; integrated DC button photocell with ON/OFF switch; 0-10V dimming; architectural full-cutoff design; engineered for long-term outdoor performance.
Recommended Applications: Exterior and interior commercial lighting, hotels, garages, commercial buildings, schools, hospitals, public areas, entrances, walkways, architectural façade lighting, and general security lighting.
Factory-Installed Options: Emergency Backup Battery, Programmable Microwave Sensor, Remote Control, Custom Paint Colors, Tamper-Resistant Screws, 480V Input Option
Rated Life: 70,000 Hours
Warranty: 7 Year Limited Warranty
Documentation: See manufacturer specification sheet.
