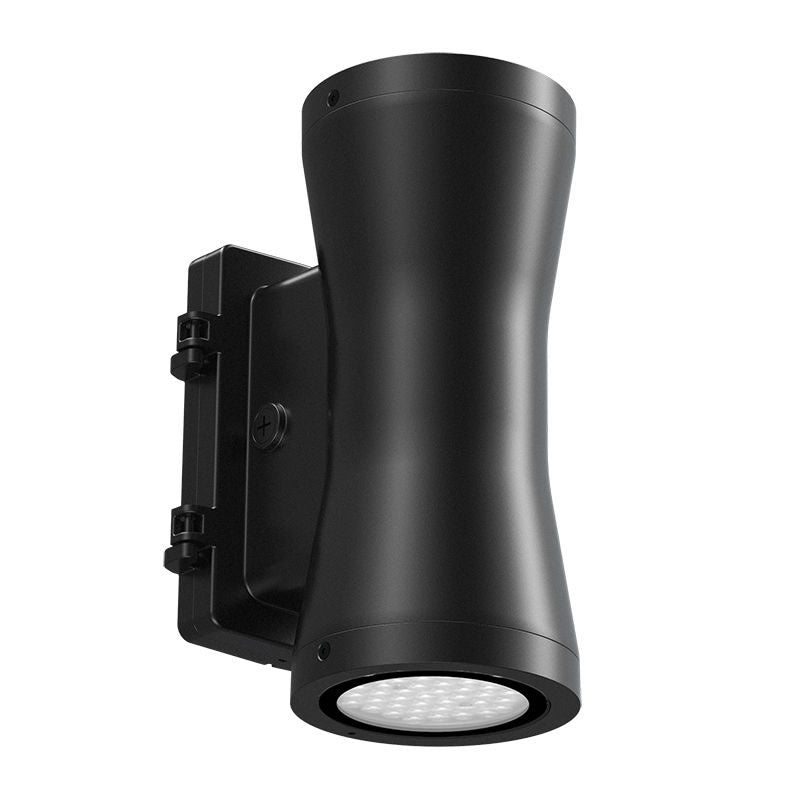

WESTGATE WMA-UDL-MCTP-BK-D 18W/30W/45W/60W LED Cylinder Up/Down Light Black Finish 27K/30K/35K/40K/50K 120-277V


$233.74
Shipping calculated at checkout.

% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF

Product Information

SKU
WMA-UDL-MCTP-BK-D
Barcode 840378313476

PRODUCT SPEC SHEET DOWNLOAD


Description

Identification & Application

WESTGATE WMA-UDL-MCTP-BK-D 18W/30W/45W/60W LED Cylinder Up/Down Light Black Finish 27K/30K/35K/40K/50K 120-277V

The WESTGATE WMA-UDL-MCTP-BK-D 18W/30W/45W/60W LED Cylinder Up/Down Light Black Finish 27K/30K/35K/40K/50K 120-277V is a architectural LED up/down cylinder fixture designed for features both up and down lighting, ideal for enhancing exterior spaces with stylish, high-output illumination. Equipped with advanced photocell technology for automatic dusk-to-dawn operation, it maximizes energy efficiency. Its sleek, modern; Wet Location; General Site Lighting, walkways, and stairways, alleys, loading docks, doorway, pathway and parking areas.

This model is part of the WMA SERIES product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate
Manufacturer Part Number (MPN): WMA-UDL-MCTP-BK-D
Series: WMA SERIES
Product Type: Architectural Fixture
Power / Wattage: 18W/30W/45W/60W
Input Voltage: 120-277V AC
Voltage: 120-277V
Color Temperature / Color: 27K/30K/35K/40K/50K, MCTP
Color Temperature: 3000K/4000K/5000K
Lumens: 6600LM Max.
Efficacy: 110 LPW
CRI: CRI ≥ 80
Dimming: 1-10V Dimming
Power Factor: >0.90
THD: <20%
Beam Angle: 45º for each side
Rated Life: 70,000 hrs
Finish: Black, Bronze, White & Silver
Housing / Material: Die-cast Aluminum & Glass
Ambient Temperature: -68°F to 104°F
Specification Sheet Features: MCTP: Multi Color Temperature & Multi Power/Wattage; 7” ARCHITECHTURAL COMMERCIAL DESIGNER OUTDOOR; CYLINDER, UP/DOWN controls & PHOTOCELL; Multi Color Temperature & Multi Power/Wattage (Selectable); The 7” Architectural Commercial Designer Outdoor Cylinder; advanced photocell technology for automatic dusk-to-dawn; building façades, entryways, and walkways, this fixture delivers
Applications: features both up and down lighting, ideal for enhancing exterior spaces with stylish, high-output illumination. Equipped with advanced photocell technology for automatic dusk-to-dawn operation, it maximizes energy efficiency. Its sleek, modern; Wet Location; General Site Lighting, walkways, and stairways, alleys, loading docks, doorway, pathway and parking areas
Documentation: See manufacturer specification sheet.
