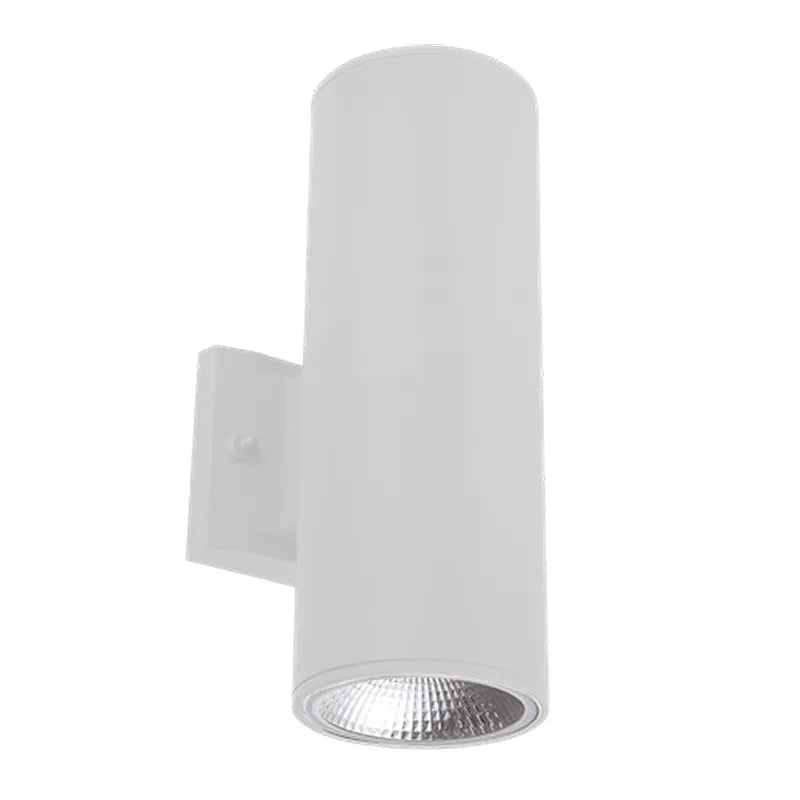

WESTGATE WMC6-UDL-MCTP-WH-DD-P 2x12W/2x16W/2x20W 6x18" LED Cylinder Up/Down Light White Finish Photocell 30K/40K/50K 120-277V

Name: WESTGATE WMC6-UDL-MCTP-WH-DD-P 2x12W/2x16W/2x20W 6x18" LED Cylinder Up/Down Light White Finish Photocell 30K/40K/50K 120-277V
Brand: WESTGATE
SKU: WMC6-UDL-MCTP-WH-DD-P
Price: 173.74 USD
Availability: InStock

$173.74

Shipping calculated at checkout.

Product Information

SKU

WMC6-UDL-MCTP-WH-DD-P

Barcode 840378310628

PRODUCT SPEC SHEET DOWNLOAD

View Spec Sheet

Description

Identification & Application

WESTGATE WMC6-UDL-MCTP-WH-DD-P 2x12W/2x16W/2x20W 6x18" LED Cylinder Up/Down Light White Finish Photocell 30K/40K/50K 120-277V

The WESTGATE WMC6-UDL-MCTP-WH-DD-P 2x12W/2x16W/2x20W 6x18" LED Cylinder Up/Down Light White Finish Photocell 30K/40K/50K 120-277V is a architectural LED up/down cylinder fixture designed for outdoor facades, entryways, and walkways, providing reliable, energy-saving lighting that adapts to changing daylight conditions; General Site Lighting, walkways and stairways, alleys, loading docks, doorway, pathway and parking areas.

This model is part of the WMC6 SERIES Outdoor Lighting product family and is intended to provide a professional lighting solution with the construction, electrical, optical, and installation characteristics documented by Westgate for this SKU.

Use the technical specifications below to confirm the exact ratings for the selected product, including wattage, voltage, light output, color temperature, finish, dimensions, controls, mounting details, certifications, and warranty where listed on the manufacturer specification sheet.

Technical Performance Specifications

Brand: Westgate

Manufacturer Part Number (MPN): WMC6-UDL-MCTP-WH-DD-P

Series: WMC6 SERIES Outdoor Lighting

Product Type: Architectural Fixture

Power / Wattage: 2x12W/2x16W/2x20W

Input Voltage: 120-277VAC 60Hz

Voltage: 120-277V

Color Temperature / Color: 30K/40K/50K, MCTP

Color Temperature: 3000K/4000K/5000K

Lumens: Color Temp. BUG Rating

Efficacy: 80LM/W

CRI: CRI ≥ 80

Dimming: (Dual Function) Triac Dimmable at 120V &

Power Factor: >0.90

Beam Angle: 40º for Each Side

Rated Life: 70,000 Hrs

Finish: Bronze, Brushed Nickel, White, Black, Antique

Housing / Material: Die-Cast Aluminum

Specification Sheet Features: Electrical: MCTP: Multi Color Temperature & Multi Power/; Installed Emergency Back up Battery; LED: COB Technology With Prismatic Reflector and; Lighting: WMC6 SERIES Outdoor Lighting; 6” LED CYLINDER LIGHTS, 120-277V WITH PHOTOCELL CUP/DOWN LIGHT); The 6” LED Cylinder Light offers versatile illumination with both up; efficient fixture includes a photocell for automatic dusk-to-dawn; ideal for outdoor facades, entryways, and walkways, providing

Applications: outdoor facades, entryways, and walkways, providing reliable, energy-saving lighting that adapts to changing daylight conditions; General Site Lighting, walkways and stairways, alleys, loading docks, doorway, pathway and parking areas

Documentation: See manufacturer specification sheet.
