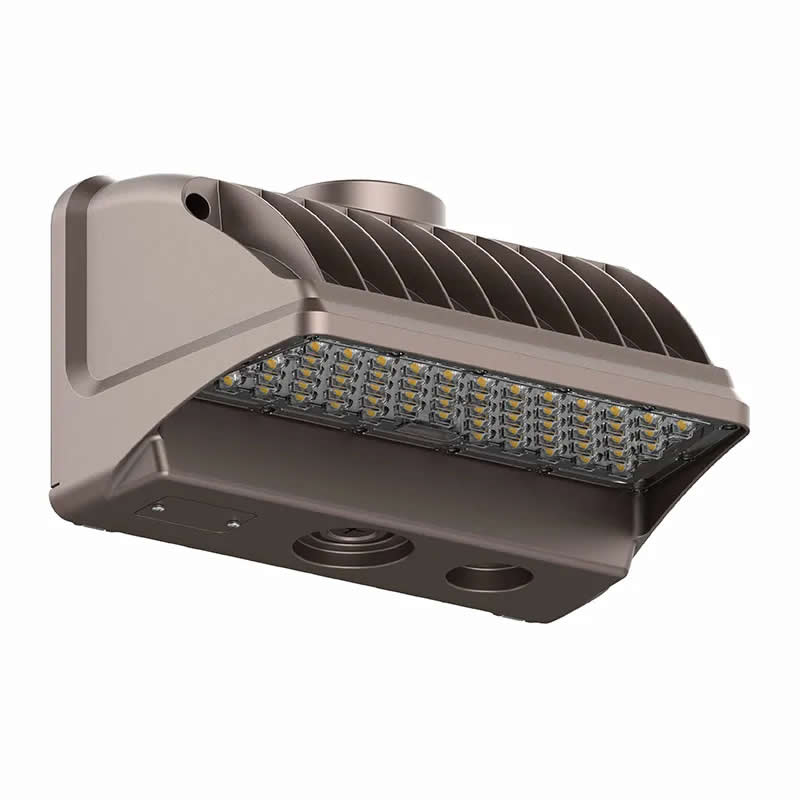

WESTGATE WPX-42W-MCTP 11W/21W/32W/42W LED Wall Pack X-Gen Cut-Off 30K/40K/50K 120-277V

Name: WESTGATE WPX-42W-MCTP 11W/21W/32W/42W LED Wall Pack X-Gen Cut-Off 30K/40K/50K 120-277V
Brand: WESTGATE
SKU: WPX-42W-MCTP
Price: 125.74 USD
Availability: InStock

$125.74

Shipping calculated at checkout.

Fixture Finish Color

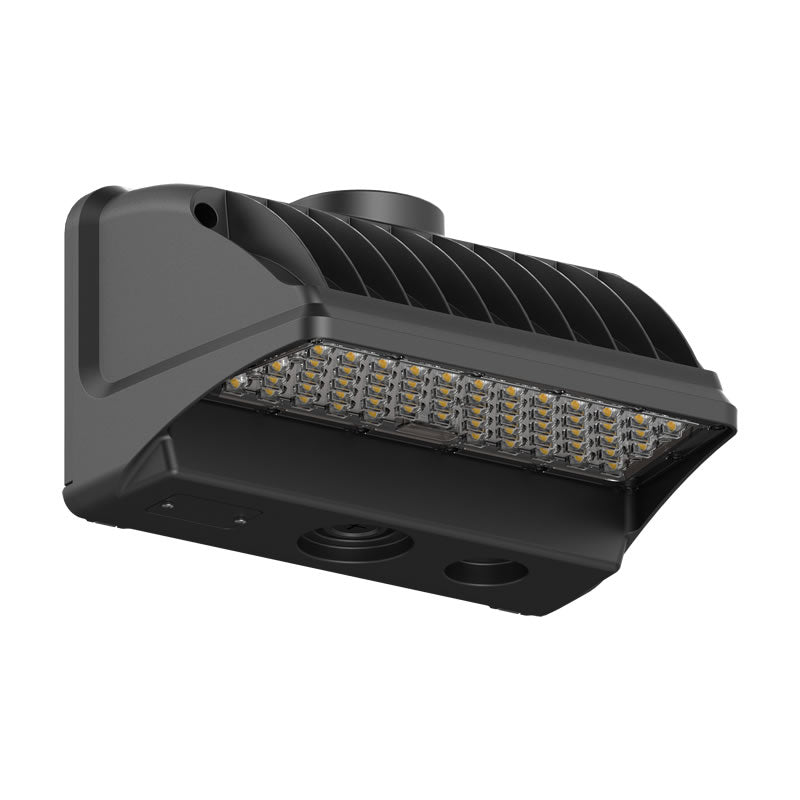

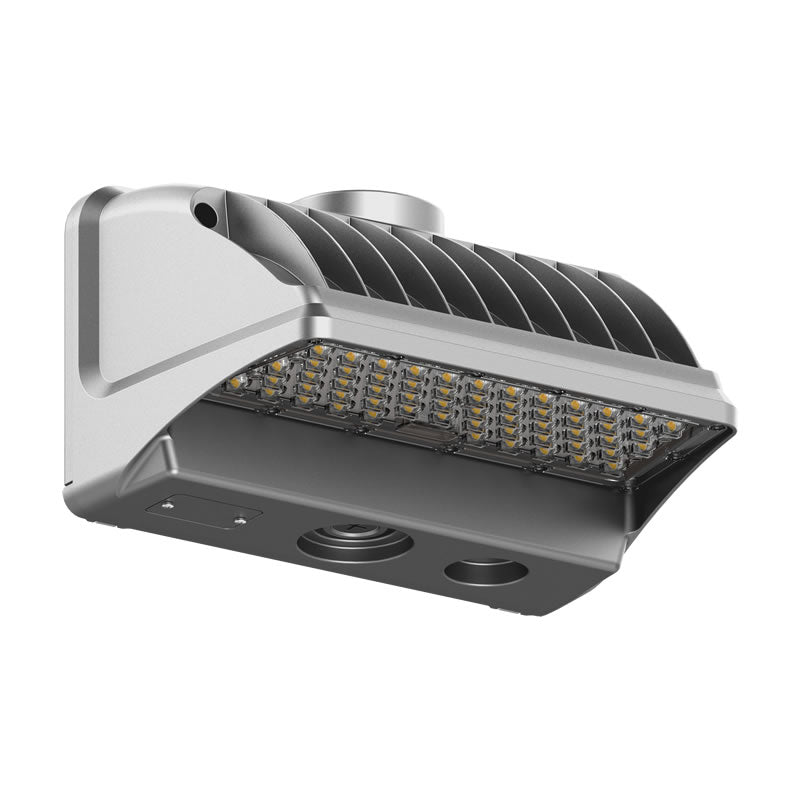

Bronze Black Silver

Product variants

Product Information

SKU

WPX-42W-MCTP

Barcode 845060063295

PRODUCT SPEC SHEET DOWNLOAD

View Spec Sheet

Description

Identification & Application

WESTGATE WPX-42W-MCTP 11W/21W/32W/42W LED Wall Pack X-Gen Cut-Off 30K/40K/50K 120-277V

The WESTGATE WPX-42W-MCTP is a power-adjustable, color-selectable LED X-Gen cut-off wall pack designed to provide dependable exterior security and commercial lighting. Its full cut-off optical design minimizes uplight while delivering uniform illumination for building exteriors, walkways, entrances, loading areas, parking facilities, and other outdoor lighting applications.

Part of the WPX Series, this fixture combines field-selectable wattage and color temperature in a rugged die-cast aluminum housing with a high-impact polycarbonate lens for long-lasting outdoor performance. The compact design makes it an excellent choice for new construction, retrofit installations, and energy-efficient lighting upgrades.

Engineered for reliable commercial operation, the WPX Series is ideal for hotels, garages, commercial buildings, schools, hospitals, public areas, and general site lighting applications. Complete electrical, mechanical, optical, and installation specifications are provided below to assist with proper product selection.

Technical Performance Specifications

Brand: Westgate

Manufacturer Part Number (MPN): WPX-42W-MCTP

Series: WPX Series

Product Type: LED X-Gen Cut-Off Wall Pack

Input Voltage: 120-277VAC, 60Hz

Selectable Wattage: 11W / 21W / 32W / 42W

Selectable Color Temperature: 3000K / 4000K / 5000K (MCTP)

Total Lumens: Up to 5,670 Lumens

Efficacy: 135 LPW

Power Factor: >0.95

CRI: CRI ≥ 80

Dimming: 0-10V Dimmable

Distribution: Type III Distribution for Wide Walkways, Entrance Roadways, Ramps, and Other Long, Narrow Lighting Applications

Housing: Die-Cast Aluminum with Durable Powder-Coated Dark Bronze Finish

Lens: High-Transmittance, UV-Resistant, Fire-Resistant Shatterproof Polycarbonate Lens

Dimensions: 9-2/3 in. W × 5-3/4 in. H × 7-1/3 in. D

Operating Temperature: -4°F to 104°F

Environmental Rating: IP65 Wet Location Rated

Compliance: Full Cut-Off, Dark Sky Compliant

Specification Sheet Features: Field-selectable wattage and color temperature; die-cast aluminum housing with durable powder-coated dark bronze finish; high-transmittance, UV-resistant, fire-resistant shatterproof polycarbonate lens; compact X-Gen design engineered for reliable long-term outdoor performance.

Recommended Applications: Exterior and interior commercial lighting, hotels, garages, commercial buildings, public areas, schools, hospitals, entrances, walkways, parking facilities, perimeter security lighting, and general site lighting.

Factory-Installed Options: Internal Emergency Backup Battery, Programmable Microwave Bi-Level Sensor, Photocell (120-277V), Remote Control, Custom Color Paint, Tamper-Resistant Screws

Other Available Model: 80W | 10,800 Lumens | WPX-80W-MCTP

Rated Life: 70,000 Hours

Warranty: 7 Year Limited Warranty

Documentation: See manufacturer specification sheet.
